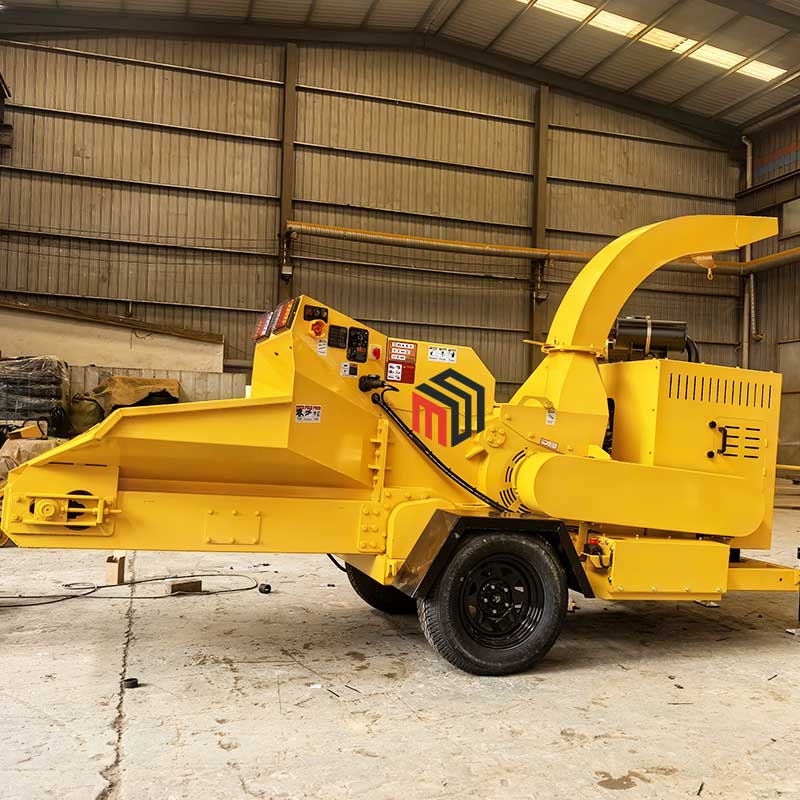

HC-6145P wood chipper shredder with a capacity of 8 tons per hour, maximum feeding diameter of 350 mm, powered by a 75KW diesel engine.
Dual power options (diesel/electric), intelligent control with electric start, voltage customizable for different markets.
Configurable features: remote control option, self-feeding system, automatic overload protection, adjustable discharge size (3-20mm), etc.
Suitable for: forestry management, municipal branch clearing, park and garden maintenance, and producing wood chips for biomass fuel, mulch, or composting.
Processes logs, hard wood, branches and forestry residues into uniform chips for easier transport, recycling and reuse.
Suitable for road tree maintenance, municipal branch clearing, parks, gardens, orchards and golf courses.
Produces wood chips for biomass fuel, mulch, composting, paper mills, particle board, high-density board and other wood-processing applications.
| Type | Wood Chipper | Certification | ISO 9001, CE, EPA |
| Power Source | Diesel or Electric | Automatic Grade | Full-Automatic |
| Materials | Logs, Branches, Leaves and Straw | Configuration | Wheeled or Crawler Option |
| Trademark | Shengmiao | Origin | China |
| Production Capacity | 1,000 Sets/Year | Transport Package | Wooden Box |
| Model | 6130P | 6140P | 6145P | 6175P |
| Capacity | 3 t/h | 5 t/h | 8 t/h | 10 t/h |
| Feeding Port Size | 300 × 230 mm | 300 × 280 mm | 450 × 380 mm | 800 × 450 mm |
| Maximum Crushing Diameter | ≤ 200 mm | ≤ 250 mm | ≤ 350 mm | ≤ 400 mm |
| Power | Diesel Engine or Electric Motor | |||
| Diesel Engine Power | 23.6 kW (32 HP) | 40 kW (55 HP) | 75 kW (105 HP) | 145 kW (200 HP) |
| Control System | Intelligent Control | |||
| Start Method | Electric Start | |||
| Battery | 12 V, 105 Ah | 24 V, 85 Ah | 24 V, 105 Ah | 24 V, 105 Ah |
| Fuel Tank Capacity | 20 L | 20 L | 25 L | 50 L |
