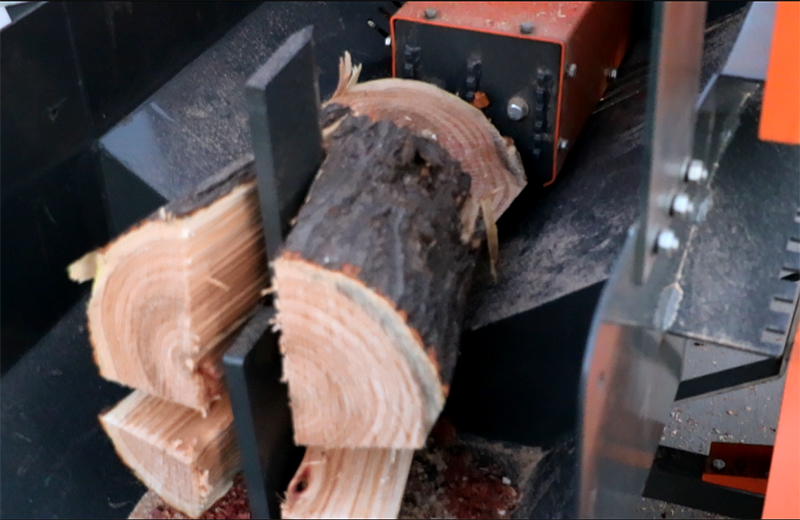

It is mainly used to split thick and complete logs, hardwood into uniform small pieces of firewood and finished wood. It can quickly split various soft and hard woods such as pine, poplar, oak and elm. It solves the problems of difficult combustion, storage and secondary processing of large-size wood, and realizes efficient resource utilization of wood materials.
On-site splitting of residual branches and waste trees from forest farms, orchards and landscape pruning.
Batch wood pretreatment for firewood factories, wood workshops and biomass fuel processing plants.
Labor-saving firewood processing for rural families, homestays and farmhouses.
Recycling and reusing waste wood from landscape projects, house demolition and construction sites.
Powerful hydraulic system completes log splitting in seconds, with far higher processing speed than manual work, greatly reducing labor costs and supporting continuous batch operation.
Suitable for logs of various specifications, not limited by wood hardness, length and thickness. No jamming or material cracking, with uniform finished wood size.
Thickened steel plate body and reinforced hydraulic cylinder with strong compression resistance. Equipped with safety protection devices to eliminate operation risks, featuring low failure rate and long service life.
One-button simple control, easy for new operators. Multiple power options (electric/diesel) adapt to indoor and outdoor sites with or without power supply.
Multi-functional machine turns waste wood into usable resources with a short payback period, effectively improving the economic benefits of wood processing.
| Model | SM15T | SM20T | SM30T | SM45T |
| Max Splitting Power | 15T | 20T | 30T | 45T |
| Max Log Diameter | 40 cm | 48 cm | 50 cm | 50 cm |
| Max Log Length | 55 cm | 60 cm | 60 cm | 60 cm |
| Engine | Diesel / Gasoline / Electric | |||
| Power | 15 HP | 18 HP / 7.5 kW | 25 HP / 27 HP / 15 kW | 25 HP / 27 HP / 15 kW |
| Knife | 4–6 Ways | 4–6 Ways | 4–8 Ways | 4–8 Ways |
| Dimensions | 2.5 × 1.4 × 1.34 m | 2.36 × 1.34 × 1.47 m | 2.81 × 1.72 × 1.32 m | 2.81 × 1.72 × 1.9 m |
| Approx. Weight | 900 kg | 1,050 kg | 1,180 kg | 2,100 kg |
