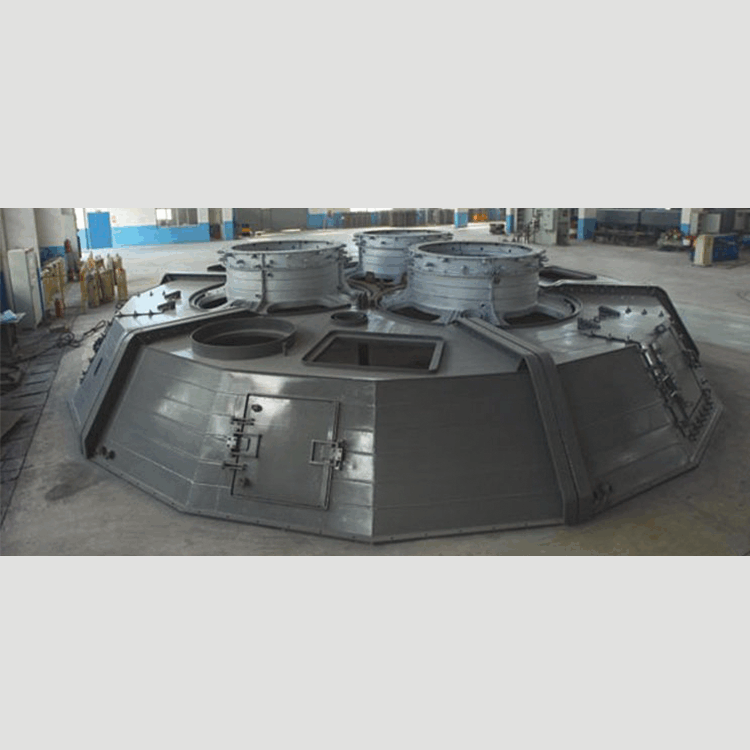

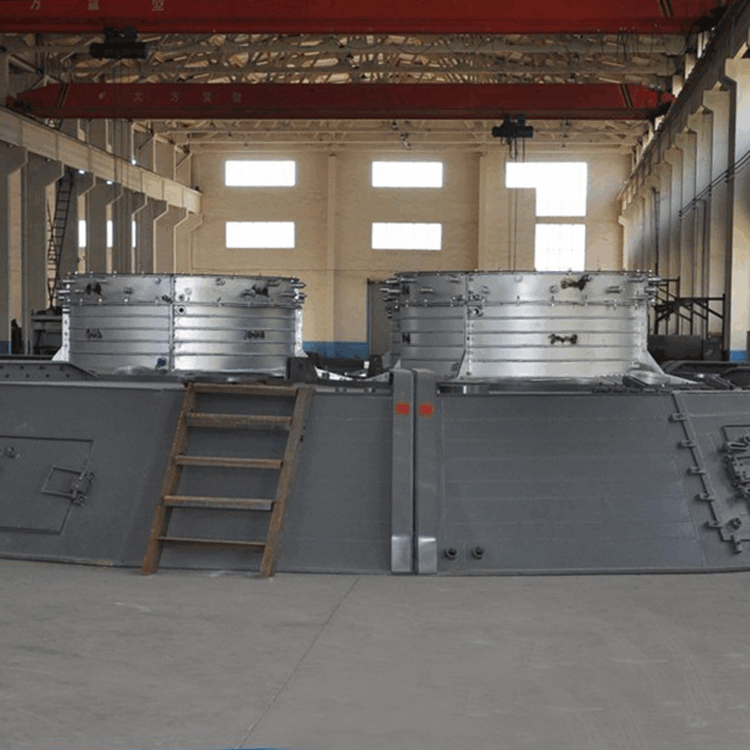

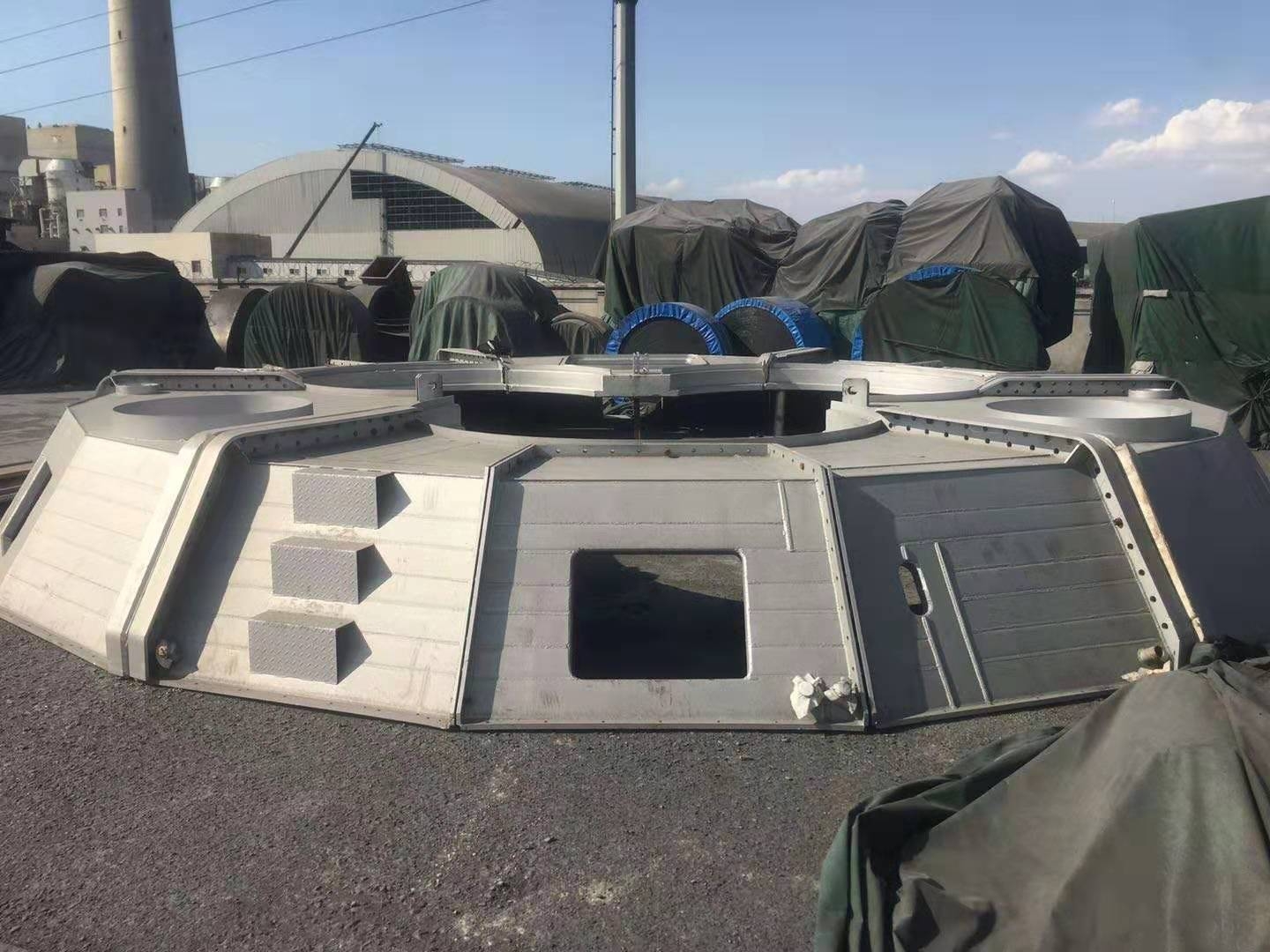

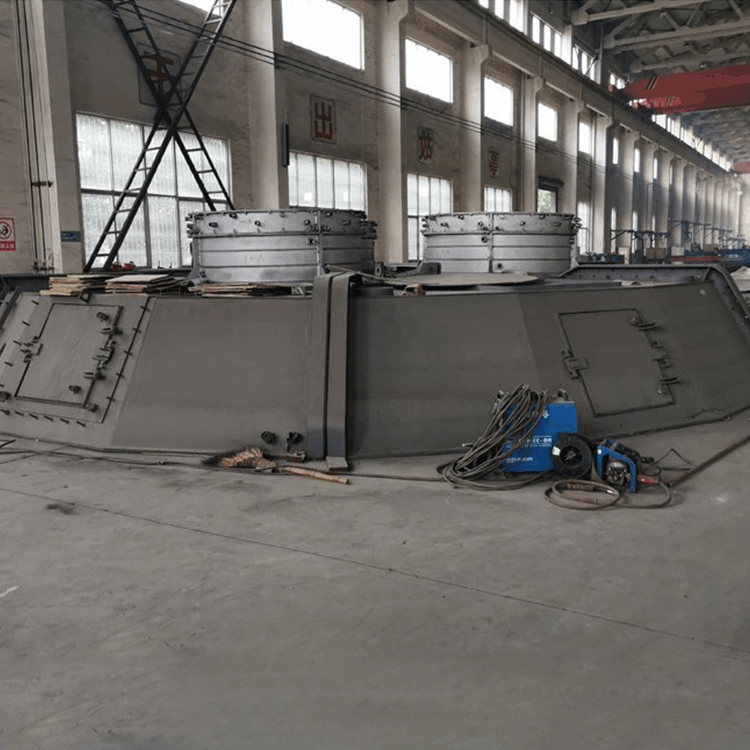

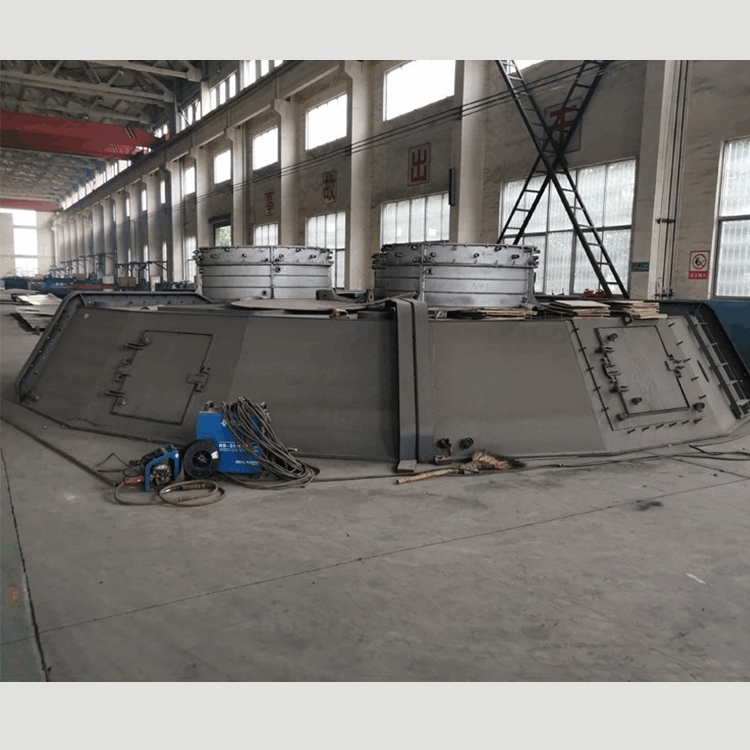

Water-cooled Furnace Cover for Submerged Arc Furnace
Introduction:
The all-metal constructed furnace cover is primarily designed for closed furnace types. Manufactured using stainless steel 321 and Q-245R (Grade 20 carbon steel), it features a modular design with an aluminum-based high-temperature refractory lining and forced water cooling system. This robust construction ensures extended service life, superior performance, and simplified maintenance.
Materials and Construction
► Materials:
The water-cooled cover adopts an all-metal structure fabricated from:
Stainless Steel 321: Offers exceptional resistance to high temperatures and corrosion, maintaining optimal performance in the harsh operating environment of submerged arc furnaces. Its chromium-nickel composition forms a protective oxide layer that prevents rust and corrosion, significantly extending service life.
Q-245R Carbon Steel: Provides excellent mechanical strength and toughness, ensuring structural integrity and reliable support under thermal and mechanical stresses.
► Modular Design:
Key advantages of our modular construction include:
Efficient Manufacturing & Installation: Prefabricated components enable streamlined production and rapid on-site assembly
Simplified Maintenance: Damaged sections can be replaced individually, minimizing downtime
Optimized Performance: Precision-engineered modules ensure superior sealing and cooling efficiency
► Lining Material:
The furnace cover features:
Aluminum-based high-temperature refractory material with outstanding thermal insulation properties
● Effectively blocks heat transfer, reducing energy loss
● Excellent thermal shock resistance accommodates thermal expansion/contraction
● Maintains lining integrity and sealing performance under extreme conditions
Advanced Water Cooling System
Our forced water circulation system ensures reliable operation in high-temperature environments:
● Internal cooling channels continuously dissipate heat, maintaining safe operating temperatures
● Prevents thermal deformation and extends component lifespan
● Maintains sealing integrity even under extreme thermal loads
Smart temperature regulation automatically adjusts water flow for optimal cooling efficiency
Key Advantages
✔ Extended Service Life
● High-performance materials withstand prolonged exposure to extreme conditions
● Reduces replacement frequency and maintenance costs
● Minimizes production downtime
✔ Superior Sealing Performance
● Advanced modular design ensures airtight operation
● Prevents gas leakage and energy loss
● Maintains stable furnace atmosphere for consistent product quality
✔ Simplified Maintenance
Modular design enables easy inspection and component replacement
Routine maintenance focuses on:
Cooling system performance
Lining condition monitoring
Connection integrity checks
✔ Enhanced Energy Efficiency
● Combined insulation and cooling system minimizes heat loss
● Improves thermal efficiency for reduced energy consumption
● Lowers production costs while meeting environmental standards
Conclusion
Our water-cooled furnace cover represents the ideal solution for submerged arc furnace applications, delivering:
● Unmatched durability in extreme operating conditions
● Improved production efficiency and product quality
● Reduced operating costs and environmental impact
● Simplified maintenance procedures
Engineered for performance and built to last, this advanced furnace cover provides reliable protection for your critical furnace components.
